Montaža i ožičenje / DIN šine, kanali i nosači / KLEMSAN KKD / KKC perforirani kanali
DIN šine, kanali i nosači
KLEMSAN KKD / KKC perforirani kanali
Serija: KKD / KKC
Perforirani PVC kabelski kanali za uredno, sigurno i servisno pristupačno vođenje vodiča unutar elektro ormara.
15–150 mmširine
Sivaboja
PVCmaterijal
2 mstandardna duljinaTehničke karakteristike
| Materijal | PVC |
|---|---|
| Boja | Stone Grey |
| Klasa gorivosti | UL 94 V-0 |
| Kontinuirana radna temperatura | −5…+60 °C |
| Servisna temperatura | −15…+60 °C |
| Maks. preporučena popunjenost kabela | 60 % |
| Standardna duljina | 2000 mm |
| Izvedba | perforirani kabelski kanal s dodatnim otvorima |
Kataloški podaci proizvođača; gdje je dostupno, dodatno provjereno prema aktualnoj tehničkoj stranici proizvođača.
Opcije i varijante
| Slika | Šifra | Model | Dimenzija W×H | Izvedba | Boja |
|---|---|---|---|---|---|
|
5552530 | KKD 2530 | 25×30 mm | Narrow slotted (4–6) | Stone Grey |
|
5552540 | KKD 2540 | 25×40 mm | Narrow slotted (4–6) | Stone Grey |
|
5552560 | KKD 2560 | 25×60 mm | Narrow slotted (4–6) | Stone Grey |
|
5552580 | KKD 2580 | 25×80 mm | Narrow slotted (4–6) | Stone Grey |
|
5552510 | KKD 2510 | 25×100 mm | Narrow slotted (4–6) | Stone Grey |
|
5554040 | KKD 4040 | 40×40 mm | Narrow slotted (4–6) | Stone Grey |
|
5554060 | KKD 4060 | 40×60 mm | Narrow slotted (4–6) | Stone Grey |
|
5554080 | KKD 4080 | 40×80 mm | Narrow slotted (4–6) | Stone Grey |
|
5554010 | KKD 4010 | 40×100 mm | Narrow slotted (4–6) | Stone Grey |
|
5556040 | KKD 6040 | 60×40 mm | Narrow slotted (4–6) | Stone Grey |
|
5556060 | KKD 6060 | 60×60 mm | Narrow slotted (4–6) | Stone Grey |
|
5556080 | KKD 6080 | 60×80 mm | Narrow slotted (4–6) | Stone Grey |
|
5556010 | KKD 6010 | 60×100 mm | Narrow slotted (4–6) | Stone Grey |
|
5558040 | KKD 8040 | 80×40 mm | Narrow slotted (4–6) | Stone Grey |
|
5558060 | KKD 8060 | 80×60 mm | Narrow slotted (4–6) | Stone Grey |
|
5558080 | KKD 8080 | 80×80 mm | Narrow slotted (4–6) | Stone Grey |
|
5558010 | KKD 8010 | 80×100 mm | Narrow slotted (4–6) | Stone Grey |
|
5551006 | KKD 1006 | 100×60 mm | Narrow slotted (4–6) | Stone Grey |
|
5551008 | KKD 1008 | 100×80 mm | Narrow slotted (4–6) | Stone Grey |
|
5551001 | KKD 1001 | 100×100 mm | Narrow slotted (4–6) | Stone Grey |
|
5551206 | KKD 1206 | 120×60 mm | Narrow slotted (4–6) | Stone Grey |
|
5551208 | KKD 1208 | 120×80 mm | Narrow slotted (4–6) | Stone Grey |
|
5551201 | KKD 1201 | 120×100 mm | Narrow slotted (4–6) | Stone Grey |
|
5551501 | KKD 1501 | 150×100 mm | Narrow slotted (4–6) | Stone Grey |
Dimenzije i ugradnja
Standardna duljina KKD kanala je 2000 mm. Visina s i bez poklopca ovisi o modelu; npr. KKD 4040 ima širinu 40 mm, visinu bez poklopca 36,5 mm i s poklopcem 40 mm.
Dodatna oprema
KKT 4040 – 553 315Držač vodiča 34×35 mm

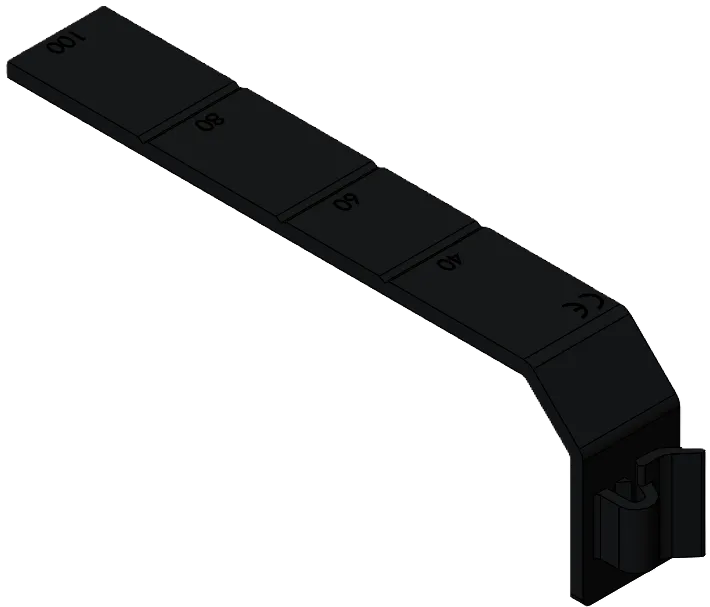

KKM – 553 415Držač kabela 83,6×14 mmTrebate pomoć pri odabiru?
Pošaljite nam traženu izvedbu, količinu i podatke o primjeni.
